RETs 100 mA雙

RET晶體管可降低處理和開發成本，同時最大程度縮小空間

Nexperia面向標準小信號數字應用提供豐富的單雙RET產品組合。

主要特性和優勢

  • 一個晶體管和兩個電阻集成在一個封裝中
  • 降低處理和庫存成本
  • 廣泛的100 mA產品范圍
  • 減少電路板空間
  • 500 mA產品組合
  • 縮短裝配時間
  • 采用SOT363/457封裝的完整雙RET系列
  • 簡化設計流程
  • 符合AEC-Q101標準
  • 減少焊點，提升系統可靠性

關鍵應用

  • 數字應用
  • 儀表盤
  • 發動機控制單元

參數搜索

RETs 100 mA double
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PEMB10; PUMB10 (Automotive) ACT
PUMB10 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PEMB16; PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm ACT
PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm Production
PEMB19; PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open ACT
PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PEMH7; PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open ACT
PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open Production
NHUMB1 80 V, 100 mA PNP/PNP resistor-equipped double transistors Qualification
NHUMB10-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB11 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB13-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB2 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB9-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMD10-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD12-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD13-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD2-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD3-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD9-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMH1-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH10-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHUMH11-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH13-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHUMH2-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH9-Q 80 V, 100 mA NPN resistor-equipped transistors Production
PDTC114ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PIMD2 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PQMB11 PNP/PNP resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMD10 NPN/PNP resistor-equipped transistors; R1?=?2.2?k?,?R2?=?47?k? Production
PQMD12 NPN/PNP resistor-equipped transistors; R1?=?47?kΩ,?R2?=?47?kΩ Production
PQMD13 NPN/PNP resistor-equipped transistors; R1?=?4.7?k?,?R2?=?47?k? Production
PQMD16 NPN/PNP resistor-equipped transistors; R1?=?22?k?,?R2?=?47?k? Production
PQMD2 NPN/PNP resistor-equipped transistors; R1?=?22?kΩ,?R2?=?22?kΩ Production
PQMD3 NPN/PNP resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMH10 NPN/NPN resistor-equipped transistors; R1?=?2.2?k?,?R2?=?47?k? Production
PQMH11 NPN/NPN resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMH13-Q NPN/NPN resistor-equipped double transistor; R1?=?4.7?k?,?R2?=?47?k? Production
PQMH2 NPN/NPN resistor-equipped transistors; R1?=?47?k?,?R2?=?47?k? Production
PQMH9 NPN/NPN resistor-equipped transistors; R1?=?10?k?,?R2?=?47?k? Production
PRMB11 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistors (RET) Production
PRMD10 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD12 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD13 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD2 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD3 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMH10 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH11 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH13 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH2 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH9 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PUMB1 PNP/PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 22 kΩ Production
PUMB11-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistors; R1?=?10?k?,?R2?=?10?k? Production
PUMB13-Q PNP/PNP resistor-equipped double transistors; R1?=?4.7?kΩ,?R2?=?47?kΩ Production
PUMB14 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PUMB15 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMB17 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMB18 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PUMB2-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PUMB20 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?2.2?kΩ Production
PUMB24 50 V, 20 mA PNP/PNP resistor-equipped transistor; R1?=?100?k?,?R2?=?100?k? Production
PUMB3 50 V, 100 mA PNP/PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?open Production
PUMB30 PNP/PNP double resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PUMB3H-Q 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMB4 PNP/PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PUMB9 PNP/PNP double Resistor-Equipped Transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PUMD10-Q NPN/PNP double Resistor-Equipped Transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMD12-Q NPN/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47 kΩ Production
PUMD13-Q NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?47?kΩ Production
PUMD14 50 V, 100 mA NPN/PNP resistor-equipped transistor; R1?=?47?k?,?R2?=?open Production
PUMD15-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?4.7?kΩ Production
PUMD16-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?47?kΩ Production
PUMD17-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 47 k?, R2 = 22 k? Production
PUMD18 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?10?kΩ Production
PUMD19 NPN/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PUMD2-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PUMD20 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 2.2 k?, R2 = 2.2 k? Production
PUMD24-Q 50 V, 20 mA NPN/PNP resistor-equipped double transistor; R1?=?100?kOhm, R2?=?100 kOhm Production
PUMD3-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PUMD30 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?open Production
PUMD4-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?open Production
PUMD48-Q NPN/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47?kΩ?and?R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMD6-Q 50 V, 100 mA NPN/PNP Resistor-Equipped Transistor; R1?=?4.7?kΩ,?R2?=?open Production
PUMD6H-Q 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMD9-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PUMH1-Q NPN/NPN resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PUMH10-Q NPN/NPN resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMH11-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PUMH13-Q NPN/NPN double Resistor-Equipped Transistor (RET); R1=?4.7?kΩ,?R2?=?47?kΩ Production
PUMH14-Q 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?47?kΩ,?R2?=?open Production
PUMH15-Q NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMH16 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?47 kΩ Production
PUMH17 NPN/NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMH18 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PUMH19 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?open Production
PUMH2-Q 50 V, 100 mA NPN/NPN resistor-equipped double?transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PUMH20-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 2.2 k?, R2 = 2.2 k? Production
PUMH24-Q NPN/NPN resistor-equipped transistor; R1 = 100 k?, R2 = 100 k? Production
PUMH30-Q NPN/NPN resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = open Production
PUMH4 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?open Production
PUMH7H-Q 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMH9-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1?=?10?k?,?R2?=?47?k? Production
PUML1 50 V, 200 mA NPN general-purpose transistor/100 mA NPN resistor-equipped transistor EndOfLife
Visit our documentation center for all documentation

Marcom graphics (1)
文件名稱 標題 類型 日期

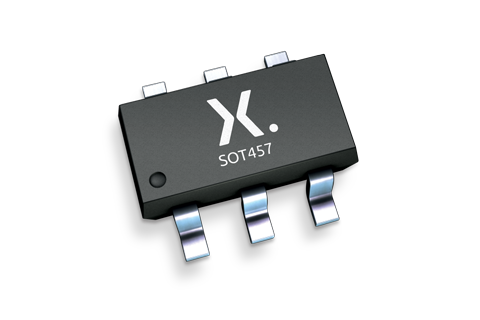

SOT457_mk.png plastic, surface-mounted package (SC-74) Marcom graphics 2018-11-26
